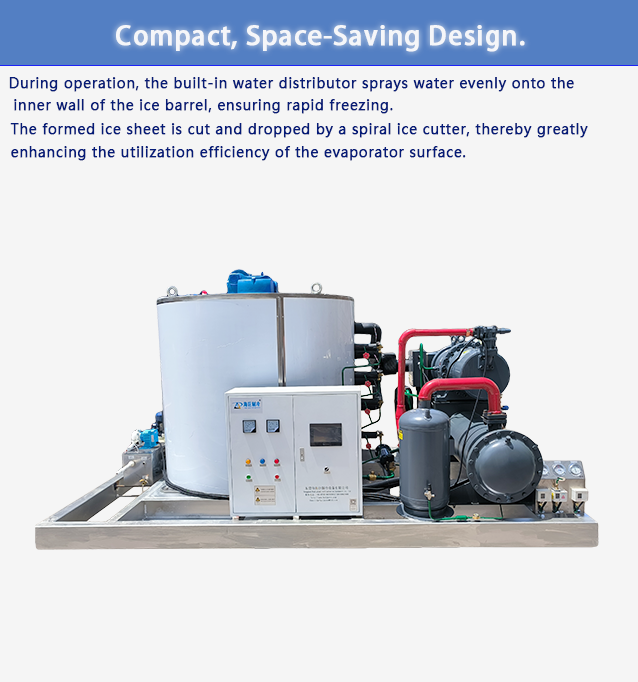

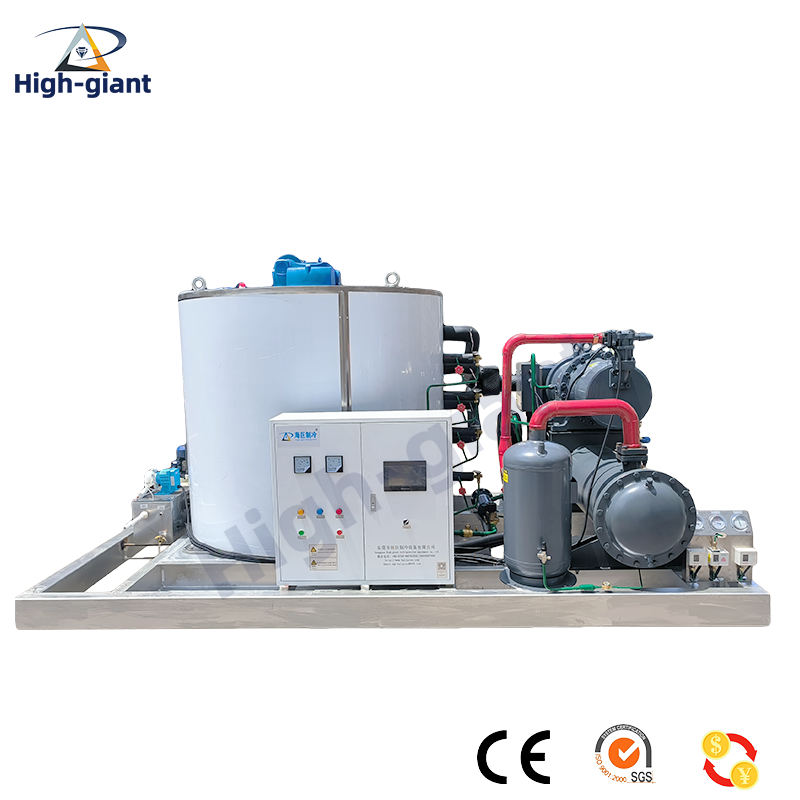

Main Configurations of Large-Scale Flake Ice Machine

Compressor: Hanbell Screw Compressor / Bitzer (Compressor)

Evaporator: Self-designed, self-manufactured and self-processed high-efficiency ice-making cylinder

Condenser: Shell-and-tube water condenser

Expansion Valve: Danfoss, Emerson brands

Refrigerant: Environmentally friendly refrigerant

Controller: PLC programmable logic controller (touchscreen operation interface optional)

Power Supply: 3P/380V/50Hz (customizable according to customer requirements)

Evaporator Configurations of Large-Scale Ice Machine

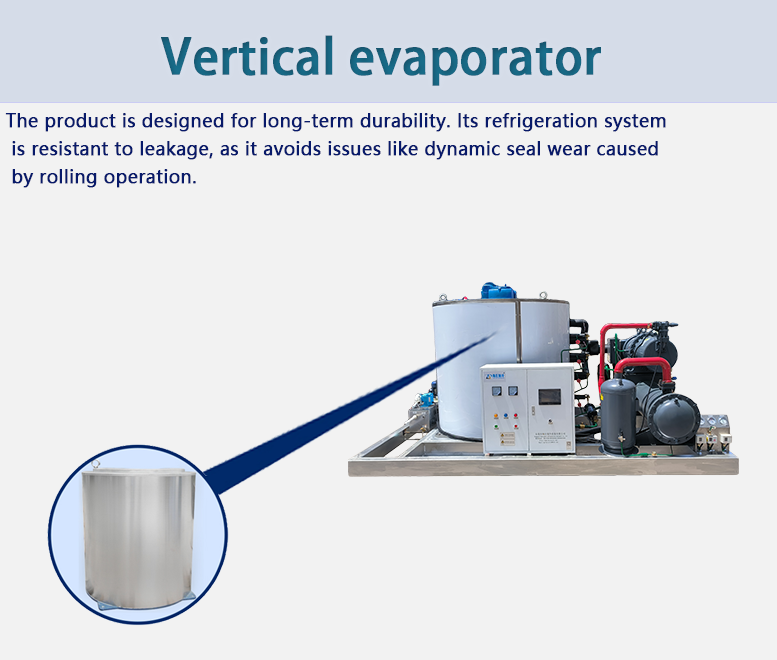

Evaporator: Self-designed, self-manufactured and self-processed high-efficiency ice-making cylinder

Evaporator Base: Aluminum alloy / 304 stainless steel

Reducer: Turbine design

Ice Cutter: 304 stainless steel spiral cutter

Water Pump: Anti-corrosion circulating water pump

Brine Pump: Anti-corrosion pulse metering pump

Water Tank: Self-made 304 stainless steel with heat preservation function

Application Systems: Freon refrigeration system, ammonia refrigeration system, direct expansion refrigeration system, flooded refrigeration system

Applications of Large-Scale Flake Ice Machine

Relying on sophisticated processing technology, professional technical personnel

and a stable operating system, High-giant Large-Scale Flake Ice Machine is widely

used in aquatic product processing, food production, refrigeration and preservation, ice

factories at ports and terminals, ice storage projects, chemical dye cooling, artificial ski

resorts, as well as large-scale projects such as concrete cooling projects and underground

coal mine cooling.

Container-Type Ice Storage Warehouse: Models (calculated by storage volume) are

divided into   5T，10T, 15T, 20T, etc.
